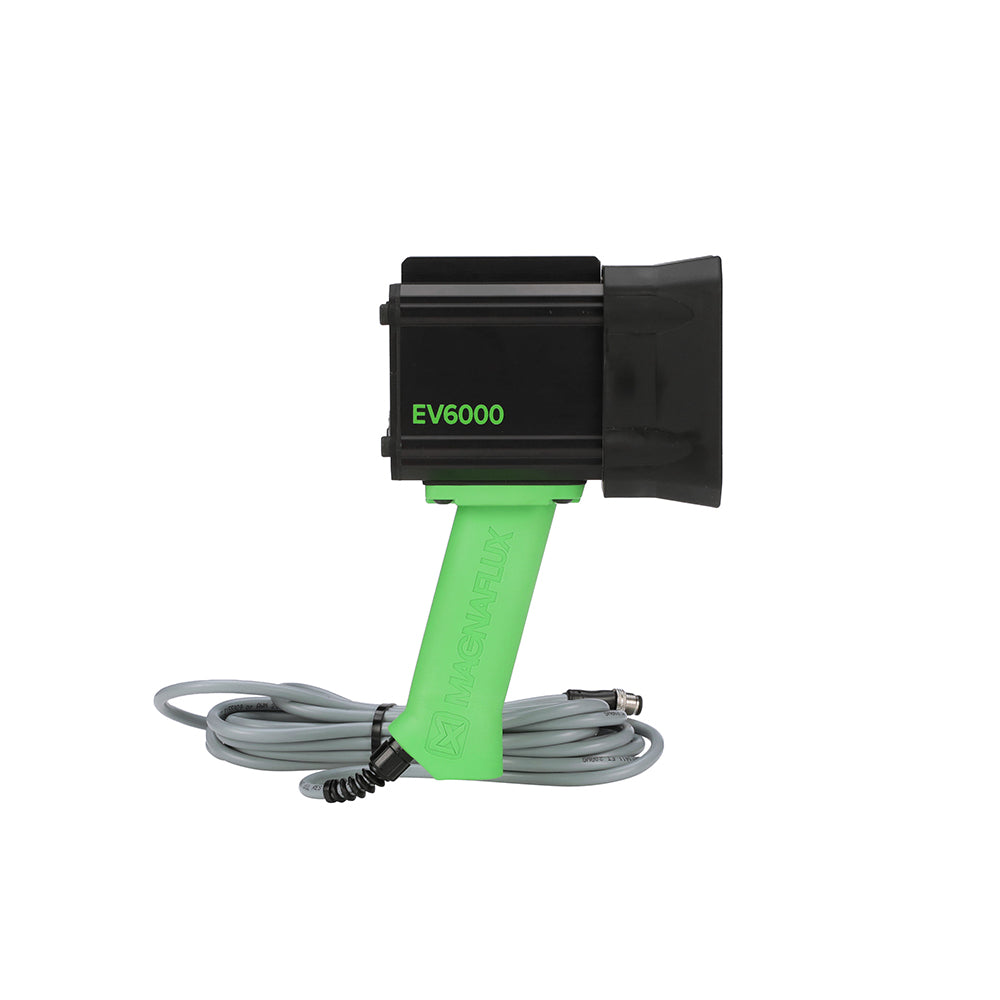

• A hand-held Magnaflux EV6000 LED UV black light lamp with a green handle and black body.
  • A hand-held Magnaflux EV6000 LED UV black light lamp with a green handle and black body side view.

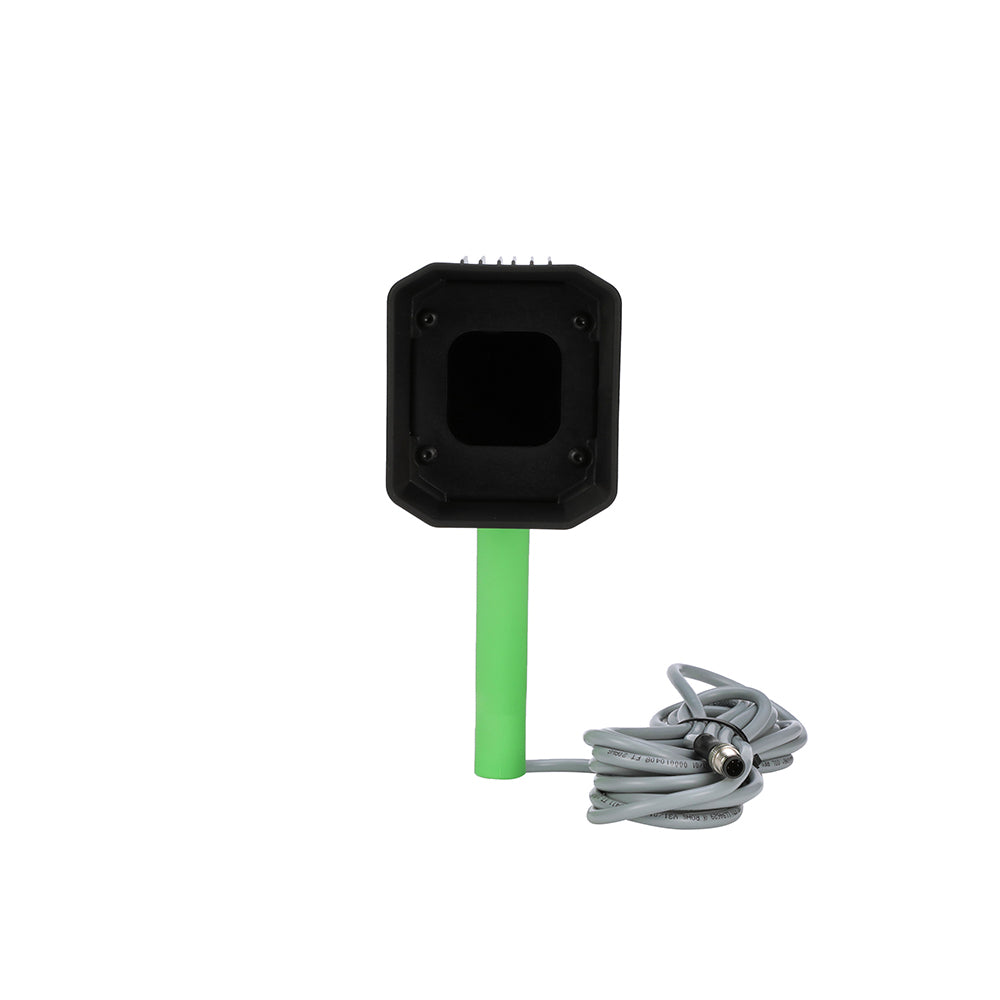

  • A hand-held Magnaflux EV6000 LED UV black light lamp with a green handle and black body front view.

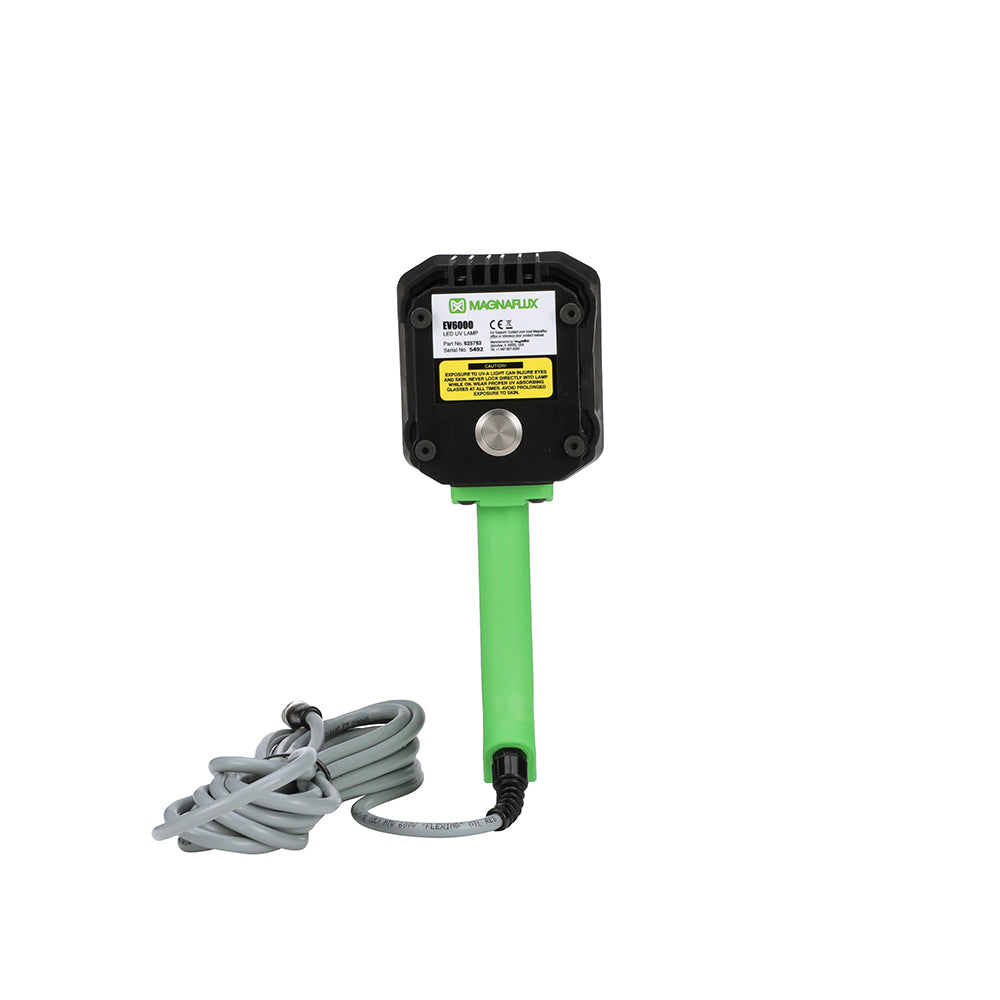

  • A hand-held Magnaflux EV6000 LED UV black light lamp with a green handle and black body back view.
  • A video showing the Magnaflux EV6000 being used for fluorescent penetrant inspection.
  • A video describing and demonstrating features of a Magnaflux EV6000 UV LED Black Light.
  • A beam comparison of the Magnaflux EV6000 compared to competition.
1 7

Magnaflux

Magnaflux EV6000 LED UV Black Light for NDT Testing

Magnaflux EV6000 LED UV Black Light for NDT Testing

SKU: 625784

Stock Status: In stock
$2,099.00
$2,432.00 $2,099.00
Sale Sold out
  • In stock items ship Same Day
  • Authorized Magnaflux Distributor
  • Questions? Call or email
View full details

The Magnaflux EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections. This advanced UV black light utilizes the latest LED technology from Magnaflux, building on 5 years of LED UV lamp designs and over 85 years of non-destructive testing experience.

Professional LED UV Black Light - Features a uniform 9-inch wide beam that's 33% wider than the next widest hand-held UV lamp in the industry for superior coverage and inspection efficiency

Key Features

  • Industry-Leading Beam Width: Uniform 9-inch (23 cm) wide beam with no hot-spots, 33% wider coverage than competing hand-held UV lamps
  • Custom-Designed Optics: Provide intense and even UV-A coverage to easily identify indications with integrated filter for minimal visible light emission
  • Rugged IP65 Design: Fully-sealed, IP65 rated housing withstands harsh inspection environments with advanced fanless cooling system
  • Multiple Certifications: Certified to ASTM E3022, RRES 90061, NADCAP, and aerospace prime OEM specifications for emission spectrum and beam profile
  • Energy Efficient: Cool-running LEDs prevent inspection booth heating while reducing energy consumption and improving operator safety

Applications

  • Fluorescent liquid penetrant testing (PT) inspections
  • Fluorescent magnetic particle testing (MT) applications
  • Aerospace component inspection and maintenance
  • Industrial quality control and manufacturing inspections
  • Field inspection applications requiring portable UV lighting

Specifications

Product Name: Magnaflux EV6000 LED UV Black Light

Beam Width: 9 inches (23 cm) uniform coverage with no hot-spots

Certifications: ASTM E3022, RRES 90061, NADCAP, Aerospace OEM approved

Protection Rating: IP65 rated for dust and water resistance

Cooling System: Advanced fanless cooling with cool-running LEDs

Brand: Magnaflux Vibrance

Magnaflux EV6000 LED UV black light delivers maximum irradiated area coverage from any hand-held lamp on the market, speeding up inspection processes while maintaining the highest standards for fluorescent NDT applications. Each unit includes manufacturer's certificate of conformance for complete traceability and quality assurance.

NDT Type:

Fluorescent Penetrant Testing and Fluorescent Magnetic Particle Inspection

Magnaflux EV6000 SPECIFICATION COMPLIANCE

  • ASTM E2297
  • ASTM E3022
  • ISO 3059
  • RRES 90061

Penetrant Testing Specifications:

  • Airbus AITM6-1001
  • ASME BPVC
  • ASTM E165
  • ASTM E1417
  • ASTM F601
  • ISO 3452
  • NADCAP AC7114/1

Magnetic Particle Testing Specifications:

  • ASME BPVC
  • ASTM E709
  • ASTM E1444
  • ASTM E3024
  • ISO 9934
  • NADCAP AC7114/2

Magnaflux EV6000 Operating Instructions
1. Connect the lamp to the power supply.
2. Connect the power supply to line power.
3. Press the power button on the rear of the lamp housing to turn on the UV LEDs.
4. The lamp will immediately be at full intensity and will stabilize within 5 minutes.
5. To turn off, press the power button on the rear of the lamp housing.
NOTE: The EV6000 is designed for continuous use; operating the lamp only when required will increase the lifespan of the UV LEDs.


MAINTENANCE
• Check UV-A intensity at regular intervals using a calibrated UV-A Meter (320-400 nm range)
• UV-A intensity readings should be taken with the lamp positioned 15 in / 38 cm from the lamp filter to the face of the sensor
• Use mild soap and a damp cloth to clean the lamp housing as needed
• Do not spray lamp or power supply or immerse any part in liquid

Product Data Sheet EV6000 Flyer UV Lamp Beam Comparison Warranty Statement Warranty Registration

Frequently Asked Questions: Magnaflux EV6000 LED UV Lamp

Q: Does the Magnaflux EV6000 meet aerospace and ASTM standards?
A: Yes. The EV6000 is fully compliant with the most rigorous NDT specifications, including ASTM E3022, RRES 90061, and AITM6-1001. It is designed for high-sensitivity inspections using Fluorescent Magnetic Particles or Liquid Penetrants, providing a beam that is uniform with no "hot spots" to ensure reliable indication detection.

Q: What is the beam intensity and coverage area of the EV6000?
A: The EV6000 provides a massive 9-inch circular beam at 15 inches (38 cm). It delivers a minimum intensity of 5,000 µW/cm² at that distance, while the custom-designed optics ensure the visible light emission is kept below 1 foot-candle. This wide, even coverage makes it significantly more efficient than older mercury-vapor lamps for inspecting large components.

Q: How do I verify the UV intensity of my lamp for compliance?
A: To satisfy audit requirements, you must regularly monitor the UV-A output and visible light leakage of your lamp. We recommend using a calibrated UV-A Digital Light Meter to ensure the lamp is performing within the 365nm range and maintaining the intensity required by your specific SOP.

Q: Can the EV6000 be used for both Fluorescent MPI and LPI?
A: Absolutely. It is the industry standard for both methods. For Magnetic Particle Inspection, it pairs perfectly with the Magnaflux Y-2 Yoke. For Liquid Penetrant testing, it provides the necessary excitation for Zyglo Fluorescent Penetrants, making the smallest surface-breaking defects glow brilliantly.

Q: Does the EV6000 require a warm-up period?
A: No. One of the primary advantages of LED technology is that the EV6000 features instant-on/off capability. Unlike traditional lamps that require a 10–15 minute warm-up or cool-down cycle, the EV6000 reaches full intensity immediately, saving time in high-volume inspection environments.
