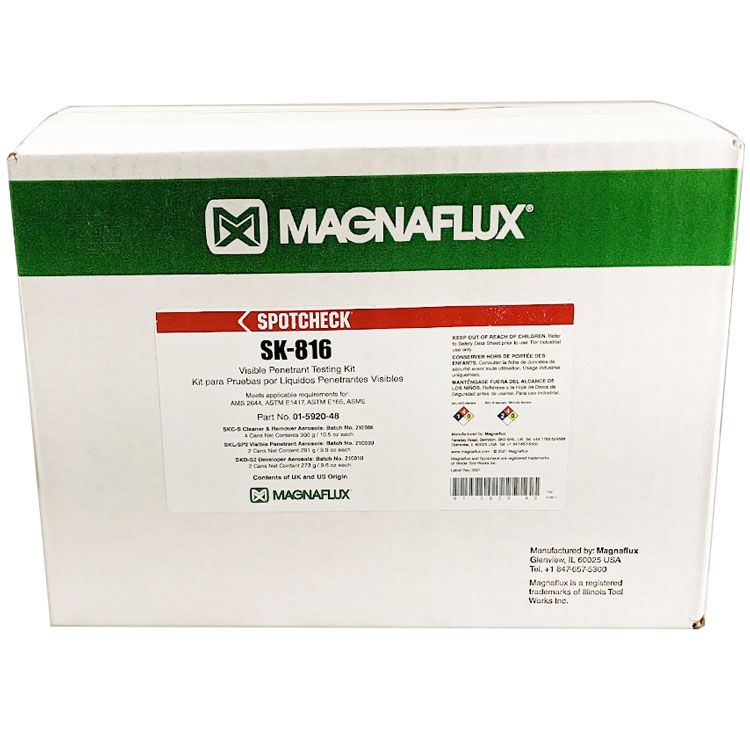

• Magnaflux SK-816 Visible Penetrant Test Kit packaging
  • Contents of the Magnaflux SK-816 Spotcheck test kit

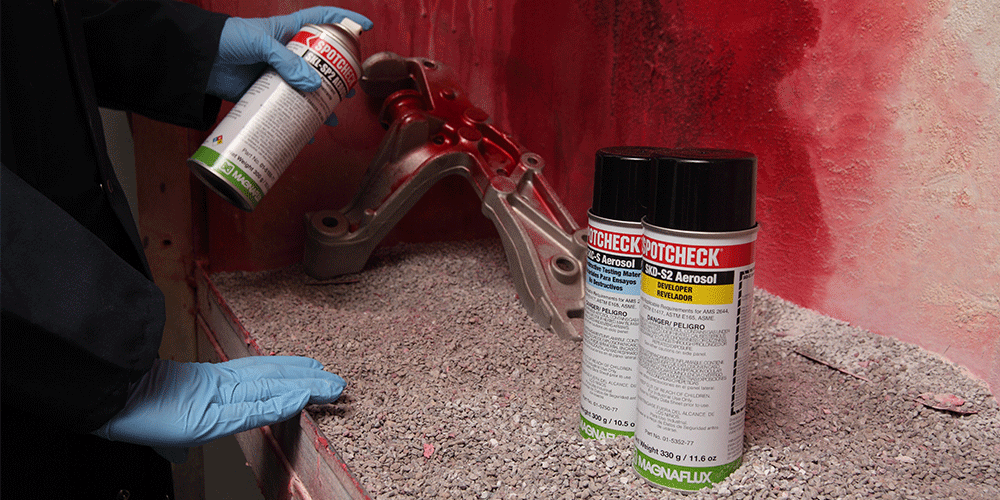

  • Video of Visible NDT inspection using Magnaflux Spotcheck products
  • Magnaflux Spotcheck Dye Penetrant Kit - SK-816 showcasing its compact aerosol design, perfect for portable non-destructive testing.

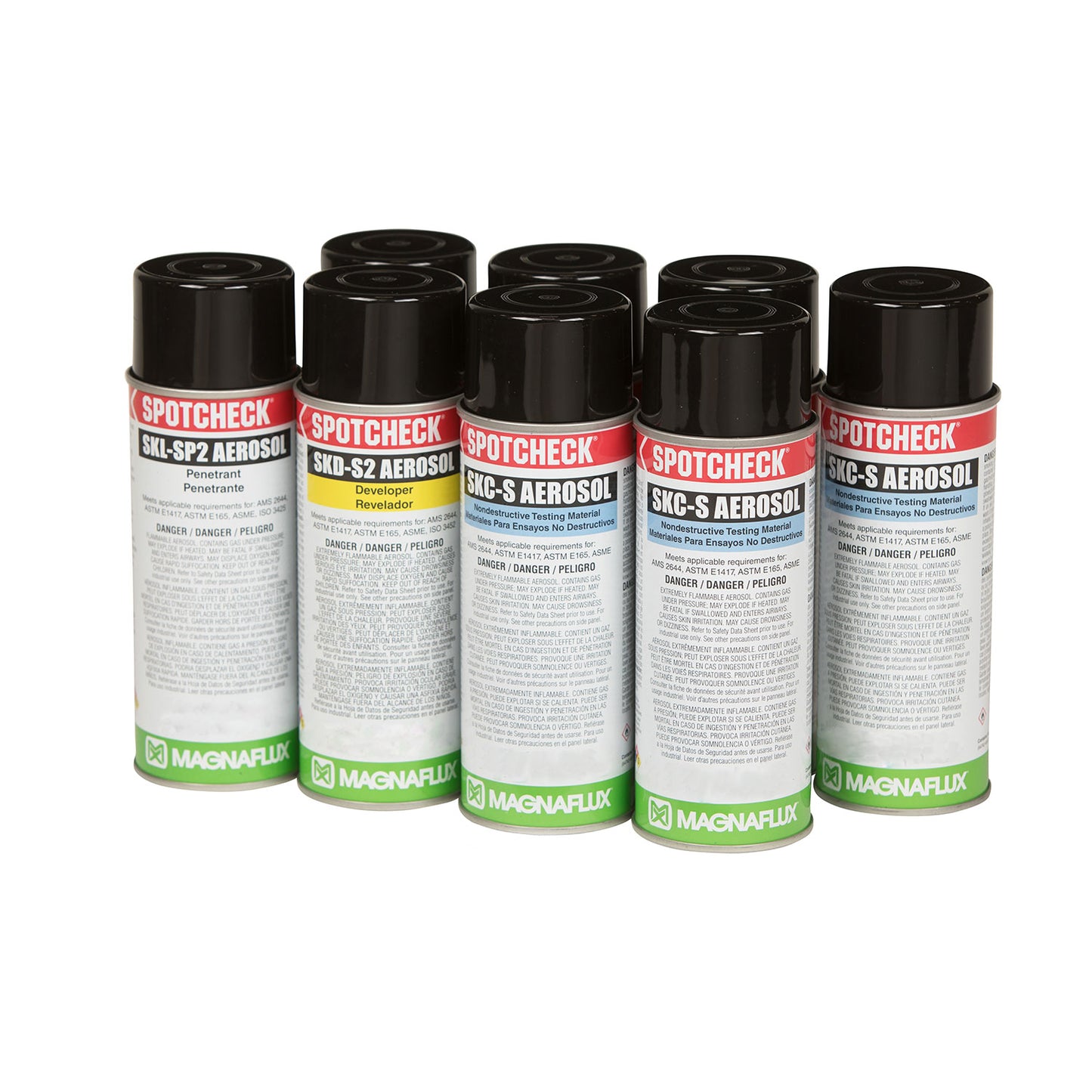

  • Close-up of Magnaflux Spotcheck Kit contents, including SKL-SP2 penetrant and SKD-S2 developer for effective flaw detection.

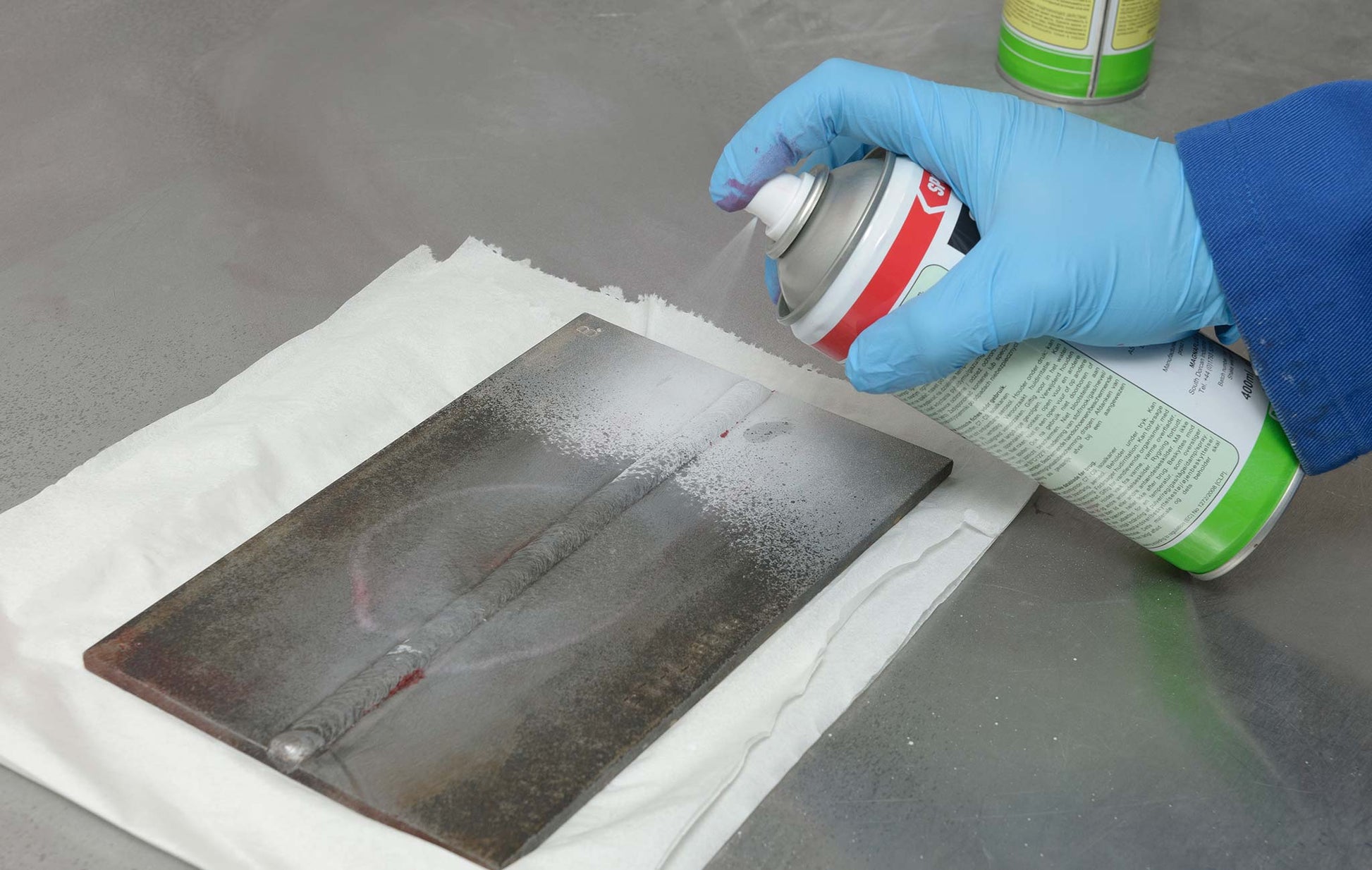

  • Magnaflux Spotcheck Dye Penetrant Kit - SK-816 in action, demonstrating its utility in identifying surface defects in metal work.
1 6

Magnaflux

Magnaflux Spotcheck Dye Penetrant Kit - SK-816

Magnaflux Spotcheck Dye Penetrant Kit - SK-816

SKU: 01-5920-48

Stock Status: In stock
$267.00
$267.00
Sale Sold out
View full details

The Magnaflux Spotcheck Dye Penetrant Kit is an essential tool for non-destructive testing professionals. This comprehensive kit is designed to detect surface defects in a variety of materials, ensuring safety and reliability in critical applications.

Each Magnaflux Spotcheck Kit is equipped with the necessary components for effective dye penetrant testing. It includes SKL-SP2 solvent removable penetrant, SKD-S2 solvent-based developer, and SKC-S remover, all conveniently packaged in an easy-to-use aerosol form. This makes it ideal for quick inspections on-site or in the field.

With its vivid, high-contrast color, the dye provides superior visibility for detecting flaws. The performance of the Magnaflux Spotcheck Kit is unmatched, delivering excellent reliability and accuracy in identifying surface inconsistencies. This kit is portable, making it an essential companion for job sites, where immediate testing is crucial.

Benefits of using the Magnaflux Spotcheck Kit include:

  • Convenient pre-packaged set of essential products for dye penetrant testing.
  • Outstanding flaw resolution with superior visibility for accurate detection.
  • Portable design, perfect for field inspections and on-site testing.
  • Quality assurance as the products are included in the QPL SAE AMS 2644 Qualified Product List.

Use the Magnaflux Spotcheck Dye Penetrant Kit to ensure quality control and enhance the safety of your metal work, including welds, forgings, pressure vessels, and castings. Reliable and efficient, this kit is your go-to solution for effective non-destructive testing.

APPLICATIONS

Ideal for:

  • Automotive maintenance
  • Machine shops
  • Castings
  • Ferrous and non-ferrous metals
  • Leak testing
  • Metalworking
  • Non-porous ceramics
  • Pressure vessels
  • Welds

Defect examples:

  • Cracks
  • Flux inclusions
  • Incomplete weld fusio
  • Incomplete weld penetration
  • Leaks
  • Undercutting
  • Weld porosity

SPECIFICATION COMPLIANCE

  • AECL
  • AMS 2644
  • ASME
  • ASTM E1417
  • ISO 3452
  • NAVSEA 250-1500-1
  • NAVSEA T9074-AS-GIB-010/271
  • QPL SAE AMS 2644

INSTRUCTIONS FOR USE

1. Pre-cleaning: Spray the surfaces to be cleaned liberally with SKC-S then either wipe off or allow to air dry, or soak a clean cloth with the cleaner and wipe the part clean. Allow the part to dry thoroughly before applying the penetrant.

2. Apply Penetrant: Spray or brush the part or section to be inspected so that surface is covered with penetrant. If penetrant pulls back in droplets stop and clean part again. (Refer to Step 1). Allow penetrant to remain on the part from 10-30 minutes. Longer penetration times may be needed for locating extremely fine or tight discontinuities.

3. Remove Penetrant: Apply SKC-S to a cloth, wipe test surface and repeat as needed. Do not spray SKC-S directly on the part because penetrant indications may be removed.

4. Apply Developer: SKD-S2 Should be applied by spray only, since dipping or brushing will cause excessive solvent action on the penetrant in discontinuities. SKD-S2 may be applied by aerosol, or conventional spray gun. SKD-S2 must be agitated during use to ensure the developer particles remain suspended during processing. Solvent-based developers like SKD-S2 should be sprayed in thin even layers, which just wet the surface. A heavy spray will cause excessive bleeding and running of indications; whereas too light a spray will result in slow indication development as well as possible loss in overall sensitivity due to limited solvent action. Allow developer to dry. Watch for large cracks to show up immediately. Smaller cracks may take a few minutes to develop the best indication.

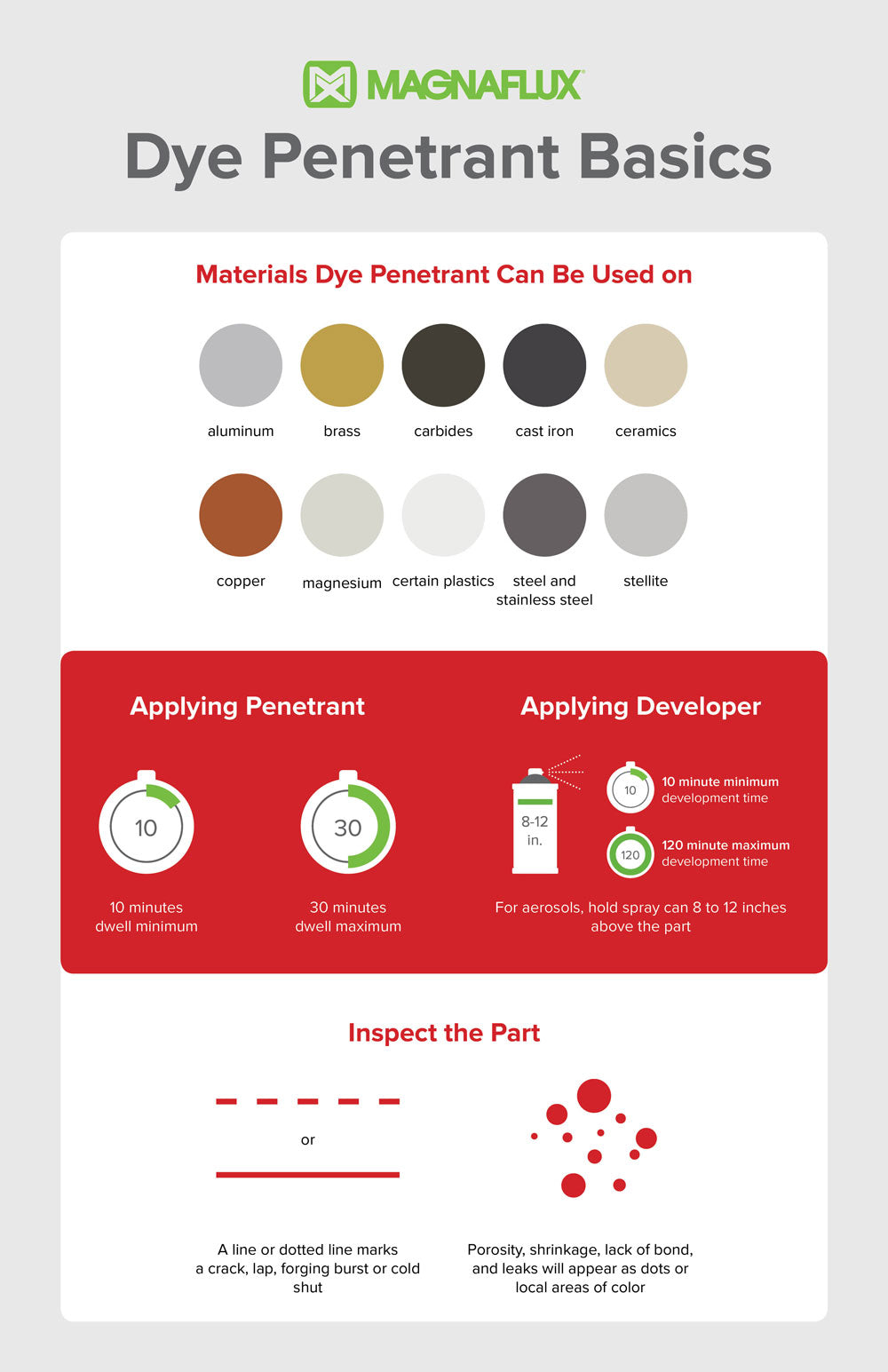

5. Inspect Part: Defects will be marked by a deep red indication. A line or dotted line marks a crack, lap, forging burst or cold shut. If wide and deep, the indication will grow and spread. Porosity, shrinkage, lack of bond, and leaks will appear as dots or local areas of color. These, too, will grow and spread if the defect is large or extensive.

Product Data Sheet
