Magnaflux

Magnaflux 14AM Fluorescent Particles

Magnaflux 14AM Fluorescent Particles

SKU: 01-0145-77

Stock Status: In stock
$32.95
$32.95
Sale Sold out
Packaging
View full details

Magnaflux 14AM Oil-Based Fluorescent Magnetic Particle Suspension

Discover the power of 14AM, a ready-to-use magnetic particle suspension designed to locate fine discontinuities in critical components. This high-performance solution delivers clear, bright, fluorescent green indications under ultra-violet light, ensuring exceptional inspection quality and accuracy.

The 14AM mixture combines industry-leading 14A magnetic particles with Carrier II NDT-approved suspension oil, providing quick and reliable magnetic particle testing with minimal maintenance. Perfect for high-performance inspections of precision safety-critical or high-stress components, 14AM meets all major industry and NDT specifications, including Aerospace, ASTM, and ISO 9934.

Enhanced Indication Detection

  • Utilize highly sensitive, strong ferromagnetic 14A particles to find smaller, finer indications.
  • Optimized particle size and shape facilitate free movement, reducing clumping and enhancing adherence to discontinuities.

Minimized Inspection Time

  • Experience quick formation of bright fluorescent indications, thanks to the highly mobile 14A magnetic particles.
  • Enjoy minimal background fluorescence for clearer visibility, allowing inspectors to work efficiently.
  • Boost inspection speed and reliability with rapid wetting of the test surface.

Consistent and Reliable Inspections

  • Maintain performance over time with durable, easily-dispersed 14A fluorescent particles.
  • Reduce particle clumping to ensure dependable inspections with consistent concentration.

Low Maintenance and Versatile

  • Enjoy a long-lasting magnetic particle bath that resists contamination and protects equipment from rust and corrosion.
  • Available in various formats, this ready-to-use particle bath is suitable for all magnetic particle inspections.
  • Compatible with a range of applicators for maximum convenience.
  • Eliminate the need for additional corrosion inhibitors, streamlining your inspection process.

Features

  • Ready-to-use
  • Low maintenance, oil-based suspension
  • High sensitivity
  • Excellent fluorescent contrast
  • Excellent particle mobility
  • Optimized particle size and shape distribution
  • Good dispersion stability
  • Low toxicity
  • High flash point

Ideal Application

  • After secondary processing
  • Critical applications
  • High strength alloys
  • In-service inspections

Defect Examples

  • Fatigue cracks
  • Grinding cracks
  • Inclusions
  • Laps
  • Quenching cracks
  • Seams
  • Shrink cracks
  • Tears
  • Welding defects

SPECIFICATION COMPLIANCE

  • AMS 2641
  • ASTM E709
  • ASTM E1444
  • ASME
  • ISO 9934
  • MIL-STD-2132
  • MIL-STD-271
  • NAVSEA 250-1500-1
  • NAVSEA T9074-AS-GIB-010/271
  • QPL SAE AMS 3045-1S
  • QPL SAE AMS 3046-1S

INSTRUCTIONS FOR USE

Use 14AM with appropriate magnetization procedure and equipment. For best results, all components, parts, or areas to be tested should be clean and dry prior to testing to provide an optimal test surface and reduce particle suspension contamination. Particle suspension must be properly mixed and continuously agitated when in use to ensure uniformity and concentration.

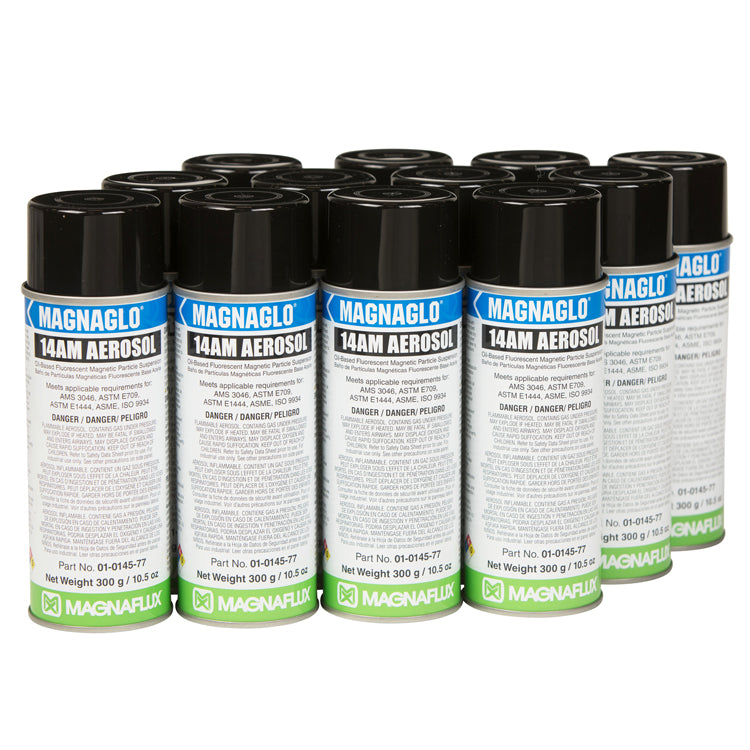

14AM Aerosol: Shake the can well before use and occasionally during application to ensure proper particle suspension. Hold the can 7 to 9 inches (18 to 24 cm) from the area to be tested. Using the continuous or residual application method, spray particle suspension over the test area until it is completely covered. Inspect under ultra-violet black light. Use in a well-ventilated area. To verify particle concentration, perform a sensitivity check using a known test standard prior to inspection.

14AM Liquid: The suspension can be applied by gently spraying or flooding the area to be tested using the continuous or residual application method. Inspect under ultra-violet black light. Check particle concentration before use.

14AM Liquid Maintenance Recommendations

Magnetic particle suspensions need to be properly maintained to provide consistent results. Suspension concentration and contamination should be monitored at least once a day, or according to applicable specifications. Contaminated suspensions, or those in use for an extended length of time, should be replaced. Properly cleaning all components, parts, or inspection areas before testing helps to significantly reduce particle suspension contamination. Particle concentration should be determined after initial bath preparation and at least once a day, or according to applicable specifications, to maintain the proper level of particles in the suspension. The most widely used method of control is by settling volume measurement in a graduated ASTM pear-shaped centrifuge tube. For testing 14AM, Magnaflux centrifuge tube 8493 is recommended: 100 ml capacity, stem graduated from 0 to 1 mL in 0.05 mL increments.

PREPARATION INSTRUCTIONS

14AM Aerosol: Use as supplied.

14AM Liquid: Use as supplied. Fill tank or container to proper level with 14AM liquid. Mix for a minimum of 15 minutes until the particles are completely and evenly dispersed in the suspension. Check particle concentration before use. Do not add additional Carrier II or mix 14AM with water.

REMOVAL

All components, parts, or inspection areas must be properly demagnetized before cleaning to ensure easy particle removal. Cleaned parts may be treated with a temporary film protective coating if longer corrosion protection is required.

Product Data Sheet Safety Data Sheet - Aerosol Safety Data Sheet - Liquid
