Magnaflux Digital White Light / Visible Light Meter - Certified

Magnaflux Digital White Light / Visible Light Meter - Certified

SKU: 622338

Stock Status: In stock
$847.00
$847.00
Sale Sold out
View full details

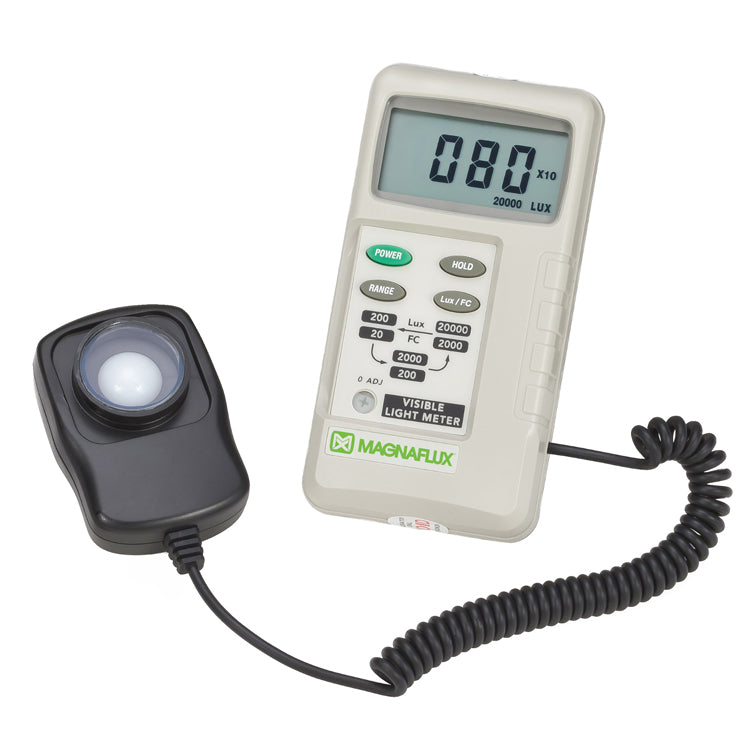

Magnaflux Visible Light Meter

The Visible Light Meter accurately measures visible light in either foot-candles or lux and includes a permanently affixed visible light sensor specially constructed to measure visible white light in the range of 400-760 nm for non-destructive testing.

  • Accurately measures visible white light emission
  • Includes meter and white light meter sensor (permanently affixed to meter by coiled cord)
  • Calibrated/Certified for NDT use
  • 400-760 nm range for ASTM E2297
  • +/-5% accuracy for NADCAP requirements
  • Range selection 0 to 2,000 ft-candles / 0 to 20,000 lux
  • Adjustable digital readout ranges: 20, 200 & 2,000 ft-candles or 200, 2,000 & 20,000 lux
  • Meter comes with battery and carrying case

For use with systems conforming to:

  • ASTM A275
  • ASTM E165
  • ASTM E709
  • ASTM E1208 / E1209 / E1210 / E1219
  • ASTM E1220 / E1418
  • ASTM E1417
  • ASTM E1444
  • ASTM E3024
  • ASME BPVC Section V
  • ISO 3452
  • ISO 9934
  • ANSI / API 6A
  • NADCAP AC7114/1
  • NADCAP AC7114/2

SPECIFICATIONS COMPLIANCE

  • ASTM E2297
  • ISO 3059

Measuring Procedure
1. Push the “Power” button to turn the meter on
2. Select the unit of measurement
3. Select appropriate range of measurement
4. Remove the protective cap covering the sensing element (verifying lens is clean and oil free)
5. The sensor probe should be held 15” from the fi ler surface of the UV light source for proper
NDT technique.
6. The probe surface should be held perpendicularly to the direction of the light beam. This
measurement is done for verifi cation of white light interference when conducting UV light
inspection
7. When the inspection is to be done with visible light, the sensor should be held near the sur
face of the part to be inspected
8. If the displayed value may be saved by pushing the “Hold” button. Depressing this button
again will clear the last saved display
