General Purpose Ultrasonic Couplants

Magnaflux General Purpose Ultrasonic Couplants

Overview

Magnaflux offers ultrasonic testing couplant gels that enhance sound transmission in non-destructive testing. These couplants are essential for ultrasonic testing applications including flaw detection, thickness gauging, flow metering, and acoustic emission testing.

Product Details and Specifications

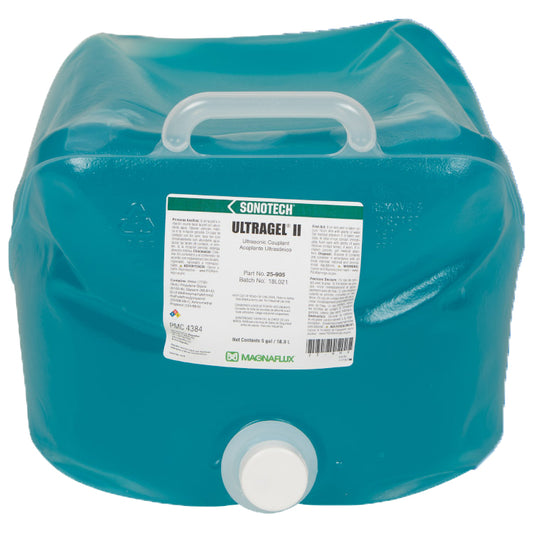

Ultragel II

Ultragel II is an industry-leading, high-performance, ultrasonic couplant for flaw detection and sizing, thickness gauging, flow metering and acoustic emission testing. Ultragel II is widely recognized as the industry's most dependable and popular ultrasonic couplant. This general-purpose medium viscosity gel is known for its outstanding performance, excellent corrosion protection, thixotropic properties and comprehensive range of specifications and approvals. Ultragel II is Pratt & Whitney approved and meets nuclear grade specifications for halogen and sulfur levels.

Key Features:

  • Industry-leading performance and reliability
  • Medium viscosity gel with thixotropic properties
  • Excellent corrosion protection for ferrous materials
  • Nuclear grade specifications compliance
  • Pratt & Whitney approved

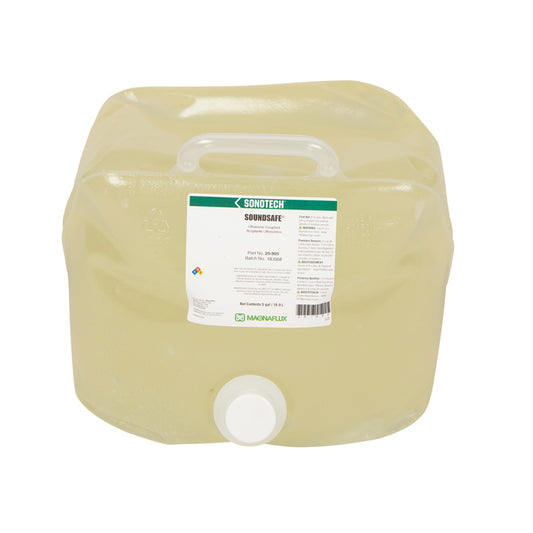

Soundsafe

Soundsafe is a high-performance, general-purpose ultrasonic couplant for flaw detection and sizing, thickness gauging, flow metering and acoustic emission testing. This medium viscosity gel couplant is well known for its outstanding performance, excellent corrosion protection, thixotropic properties and comprehensive range of specifications and approvals. Soundsafe is Pratt & Whitney approved and meets nuclear grade specifications for halogen and sulfur levels.

Key Features:

  • High-performance general-purpose formulation
  • Medium viscosity gel with thixotropic properties
  • Excellent corrosion protection
  • Nuclear grade specifications compliance
  • Pratt & Whitney approved

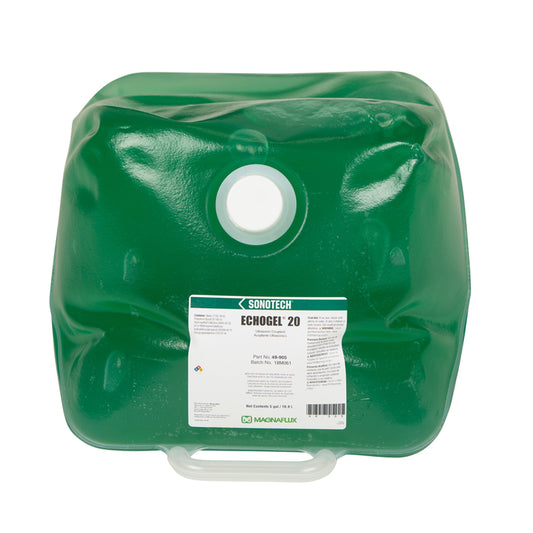

Echogel

An economical couplant for flaw detection, sizing and thickness gauging where salt cake or metal corrosion salts are present. It provides good corrosion inhibition and resists viscosity breakdown on salt-caked boilers and other corroded materials.

Key Features:

  • Economical option for basic applications
  • Specifically designed for salt-caked or corroded surfaces
  • Good corrosion inhibition properties
  • Maintains viscosity on corroded materials
  • Available in two different viscosities (Echogel 14 and Echogel 20)

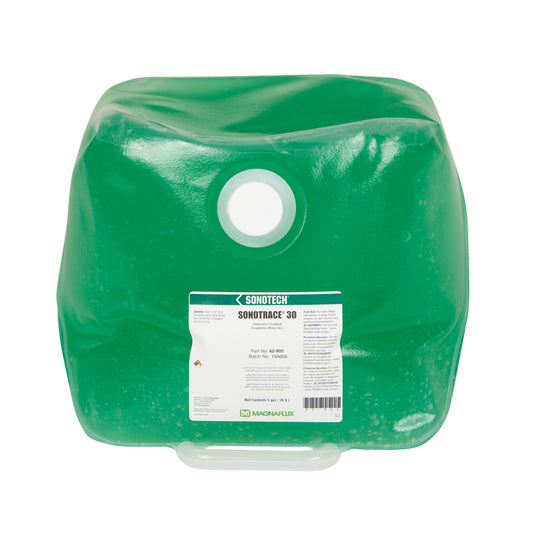

Sonotrace

General-purpose, glycerin-free ultrasonic couplant for flaw detection and thickness gauging applications.

Key Features:

  • Glycerin-free formulation
  • General-purpose applications
  • Suitable for flaw detection and thickness gauging
  • Now available in bright, vibrant colors that won't fade or turn cloudy

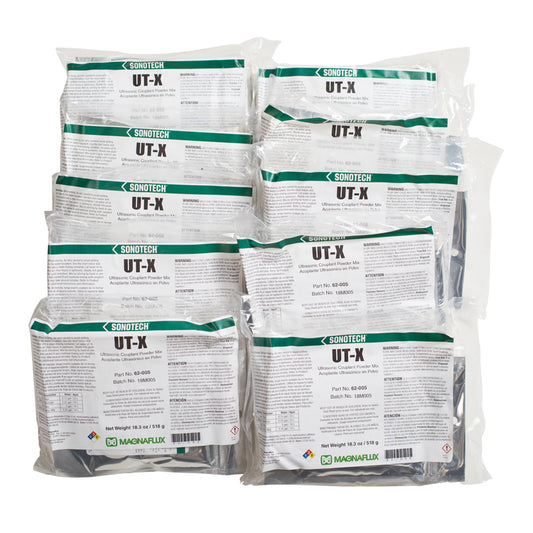

UT-X Powder

Cost-effective couplant powder for flaw detection and thickness gaging applications with ferrous corrosion inhibition. UT-X Powder retains viscosity on salt caked boiler tubes, corroded pipe, structural steel, steel billets, welds and ship plate.

Key Features:

  • Powder form for cost-effective mixing
  • Excellent for heavily corroded surfaces
  • Ferrous corrosion inhibition properties
  • Retains viscosity on challenging surfaces
  • Ideal for industrial applications with severe corrosion

Applications and Uses

Primary Applications

  • Flaw Detection: All couplants are suitable for detecting internal flaws and discontinuities
  • Thickness Gauging: Measuring material thickness in various applications
  • Sizing: Determining the size and extent of detected flaws
  • Flow Metering: Ultrasonic flow measurement applications
  • Acoustic Emission Testing: Monitoring structural integrity

Industry Applications

  • Nuclear Industry: Ultragel II and Soundsafe meet nuclear grade specifications
  • Aerospace: Pratt & Whitney approved formulations for critical applications
  • Power Generation: Particularly effective on boiler tubes and power plant components
  • Marine: Suitable for ship plate and marine structural inspections
  • Industrial Manufacturing: Steel billets, structural steel, and welded components

Surface Conditions

  • Clean Surfaces: All couplants work effectively on clean materials
  • Corroded Surfaces: Echogel and UT-X Powder specifically designed for corroded materials
  • Salt-Caked Surfaces: Echogel and UT-X Powder maintain performance on salt-caked materials
  • Rough Surfaces: Powder formulations like UT-X provide good coupling on irregular surfaces

Product Improvements

Magnaflux has improved these couplants with better corrosion protection, safe mild formulations, and environmentally friendly properties. Ultragel II, Echogel, and Sonotrace couplants now come in bright, vibrant colors that won't fade or turn cloudy.

Improvement Benefits:

  • Enhanced corrosion protection
  • Safer formulations for personnel
  • More environmentally friendly
  • Improved color stability
  • Better overall performance

Selection Guidelines

  • Ultragel II: Premium choice for critical applications requiring highest performance
  • Soundsafe: High-performance alternative to Ultragel II with similar specifications
  • Echogel: Economical choice for corroded or salt-caked surfaces
  • Sonotrace: Glycerin-free option for general applications
  • UT-X Powder: Most cost-effective option for heavily corroded surfaces and large volume applications

These Magnaflux ultrasonic couplants provide comprehensive solutions for various ultrasonic testing requirements, from critical aerospace applications to industrial maintenance and inspection tasks.
