Magnaflux Zyglo ZL-37 Penetrant - Level 4

Magnaflux Zyglo ZL-37 Penetrant - Level 4

Regular price $58.95
Regular price Sale price $58.95
Sale Sold out
Shipping calculated at checkout.

SKU: SKU:01-3188-77

Stock Status: In stock

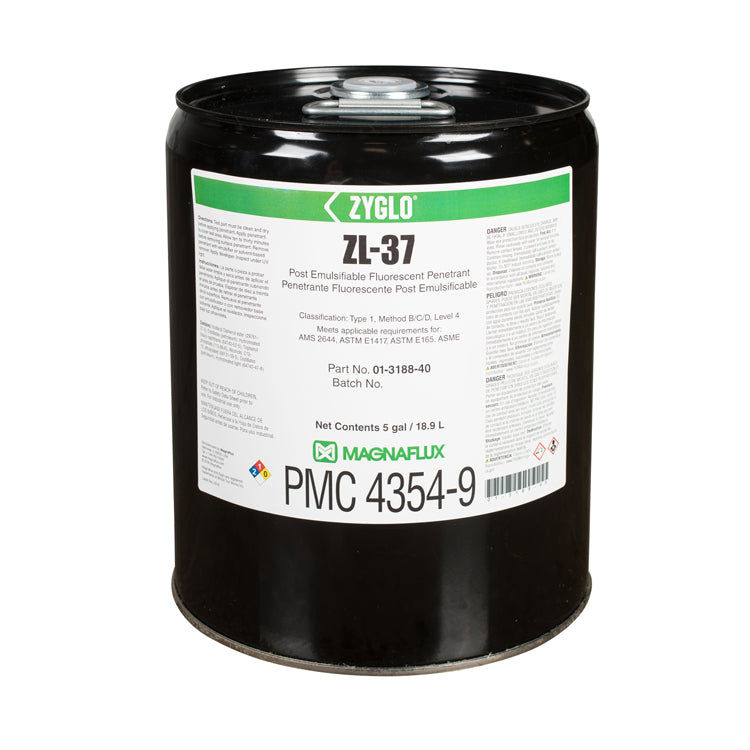

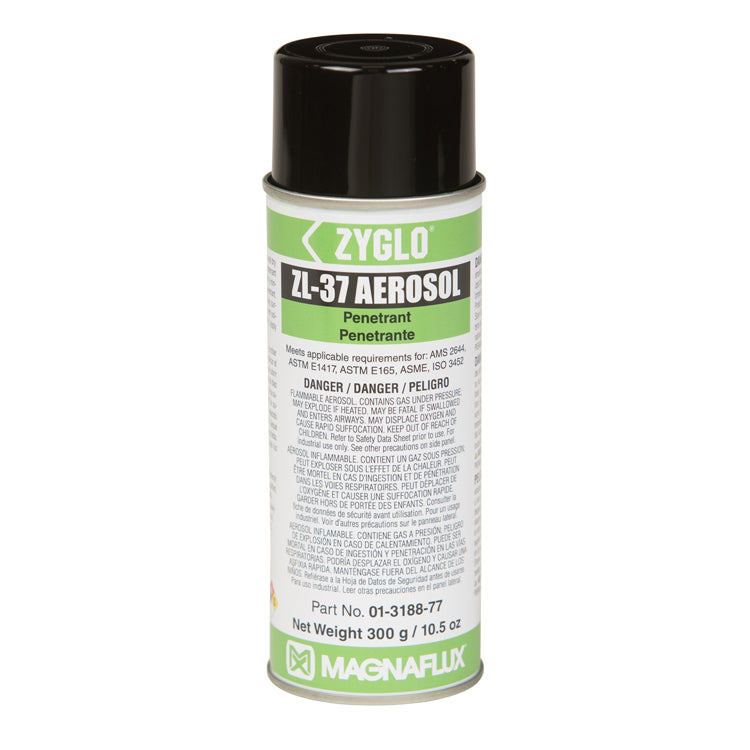

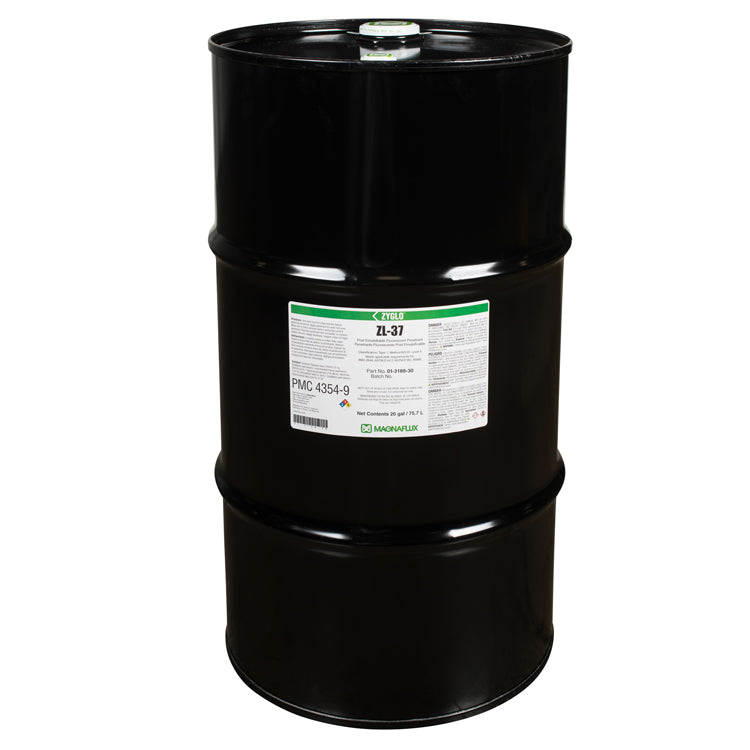

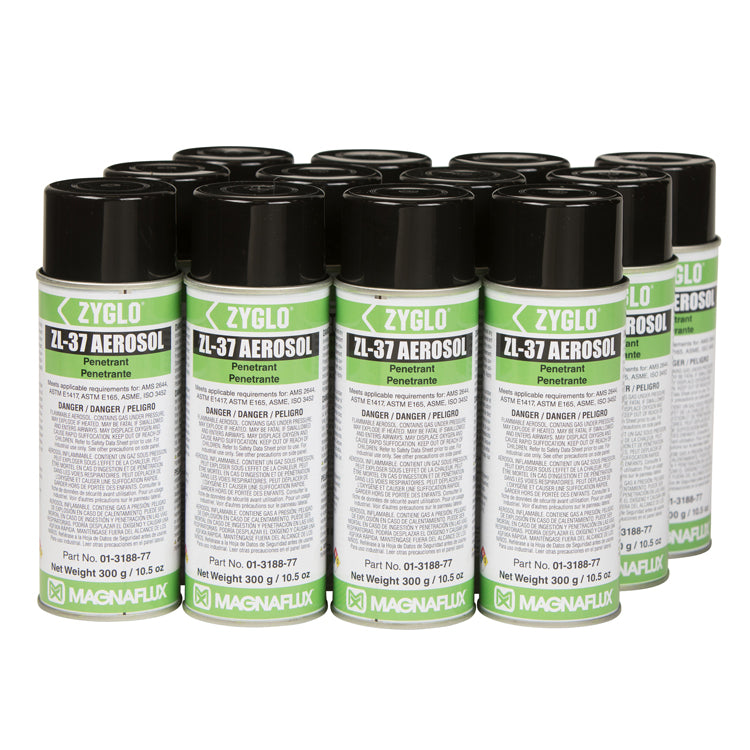

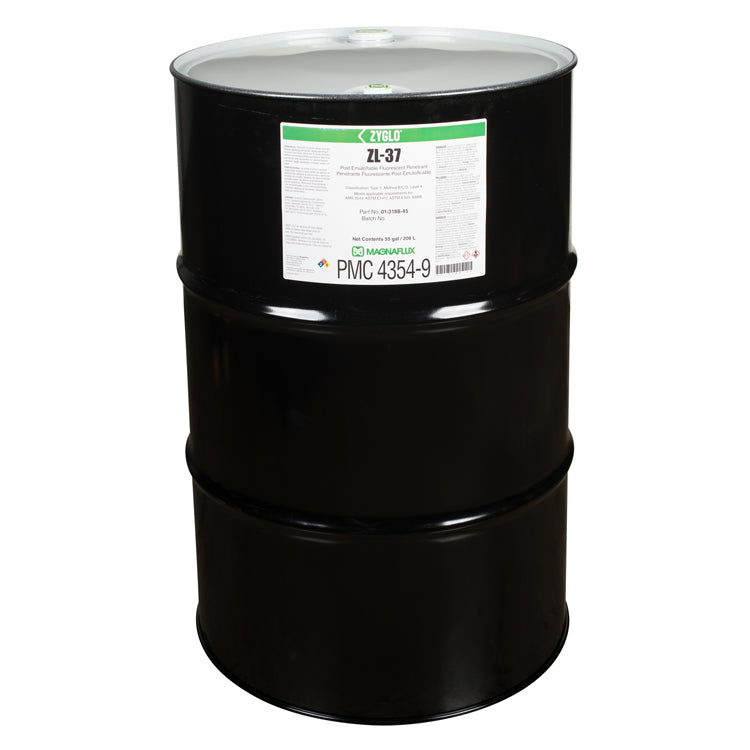

Packaging

Magnaflux ZL-37 Level 4 Post Emulsifiable Fluorescent Penetrant

Designed for critical component applications, ZL-37 is an ultra-high sensitivity penetrant that excels in detecting fine, tight discontinuities in safety-critical components, including titanium turbine parts and high-stress investment castings. This Type 1 penetrant is non-water-soluble, minimizing the risk of washing away the penetrant from defects, ensuring reliable and dependable penetrant testing.

With a high flash point and long tank life when used in open dip tanks, ZL-37 can also be applied via electrostatic spray. For removal, it is compatible with ZE-4E Method B lipophilic emulsifier or ZR-10E Method D hydrophilic emulsifier.


Benefits

  • Enhance detection: Achieve the clearest, brightest indications for even the smallest flaws, thanks to superior UV and thermal stability.
  • Maximize inspection control: Prevent over-washing since ZL-37 cannot be removed with water alone, reducing human error during the inspection process.
  • Versatile applications: Suitable for inspecting a variety of high-value components without concerns of corrosion or specification non-conformance, meeting major industry standards.
  • Operator comfort and safety: Provides a more pleasant working environment by reducing strong odors and exceeding EHS requirements.

Features

  • Level 4 ultra-high sensitivity
  • Post emulsifiable with bright, high-contrast indications
  • Resistant to over-washing
  • Low odor and very low toxicity
  • High thermal and UV stability
  • Alloy compatibility
  • QPL SAE AMS 2644 Qualified Product List
  • Approved for use by Pratt & Whitney

Specifications

  • Meets AMS 2644, ASTM E1417, ISO 3452, and other NDT specifications

Applications

Defect location: Open to surface

Ideal for:

  • Detecting fine to very-fine discontinuities in precision and safety-critical components
  • High-stress parts and investment castings
  • Turbine engine blades and disks

Use Recommendations

NDT Method: Fluorescent Penetrant Testing

Sensitivity Level: Level 4

Temperature Range: 40 to 125°F / 4 to 52°C

Required Equipment: UV light source, such as the EV6000
