Magnaflux Y-7 Magnetic Particle Inspection Yoke - 115V

Magnaflux Y-7 Magnetic Particle Inspection Yoke - 115V

SKU: 625643

Stock Status: In stock
$1,029.00
$1,280.00 $1,029.00
Sale Sold out
View full details

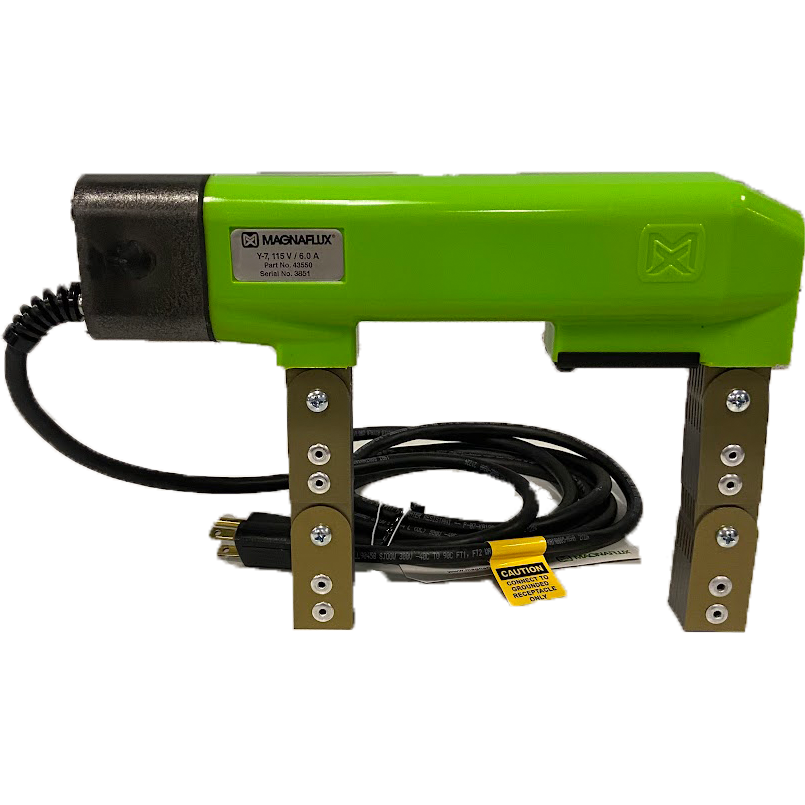

Discover the power and reliability of the Magnaflux Y-7 Magnetic Particle Inspection Yoke. This high-performance yoke operates on both AC and DC, making it a versatile tool for detecting surface and sub-surface indications in a variety of applications. Engineered with robust, chemical-resistant materials, the Magnaflux Y-7 is designed to endure even the toughest conditions while maintaining accuracy in inspections.

Featuring articulating legs, this yoke easily conforms to different part shapes, ensuring a secure fit during inspections. The twelve-foot, strain-relieved cord empowers you for field use, providing the flexibility you need in remote testing scenarios. Whether you are inspecting welds, metal structures, or components in production lines, the Magnaflux Y-7 delivers reliable results.

With solid-state controls, operators can select between AC magnetic fields for detailed surface indications or DC for deeper sub-surface evaluations. This adaptability allows you to meet diverse inspection requirements with just one yoke.

The Magnaflux Y-7 meets and exceeds ASTM lifting specifications, ensuring its effectiveness and reliability. Each yoke is assigned an individual serial number, enhancing quality control and traceability.

Consider the Magnaflux Y-7 for your magnetic particle testing needs and enjoy the range of benefits it offers:

  • Durable, sealed construction resistant to chemicals and abrasion.
  • AC and DC operation for comprehensive inspection capabilities.
  • Exceeds rigorous ASTM standards for lifting performance.

For optimal performance, pair the Magnaflux Y-7 with essential accessories like the Yoke Test Weight to enhance your inspection process. Choose the Magnaflux Y-7 Yoke and elevate your inspection capabilities today!

Defect location: Surface and subsurface

Ideal for:

  • Field testing
  • Spot inspections
  • In-service inspections
  • Demanding environments
  • Weld inspection

Defect examples:

  • Inclusions
  • Seams
  • Shrink cracks
  • Tears
  • Laps
  • Welding slag
  • Grinding cracks
  • Quenching cracks
  • Fatigue cracks

Magnaflux Y-7 AC/DC Yoke Specifications

  • ASME BPVC
  • ASTM E709
  • ASTM E1444
  • ASTM E3024

OPERATION

1. Connect yoke to power supply / battery pack.

2. Y-7 Model Only: Select AC or DC operating mode using switch on back of yoke. WARNING: Do not operate selector switch while yoke is energized.

3. Position yoke legs at right angles to the direction of suspected discontinuities. Adjust legs as needed for best contact with surface.

4. Depress trigger to energize yoke. Apply magnetic particles to area between legs.

a. If using dry powder, blow off excess while yoke is energized to reveal indications.

b. If using fluorescent particles, view surface with UV-A in darkened environment to reveal indications.

5. Evaluate indications for size, shape, and relevant location.

6. Reposition yoke legs at 90-degrees to previous position and repeat steps 4-5 to reveal indications in all directions.

7. Y-6 and Y-7 Models Only: Demagnetize by energizing yoke then slowly withdrawing it from the surface, up to 18 in / 45 cm distance. NOTE: For Y-7 model only, use AC mode for demagnetization.

Product Data Sheet
