Magnaflux S-1212 Demag Coil 230 Volt

S-1212 Demagnetizing Coil

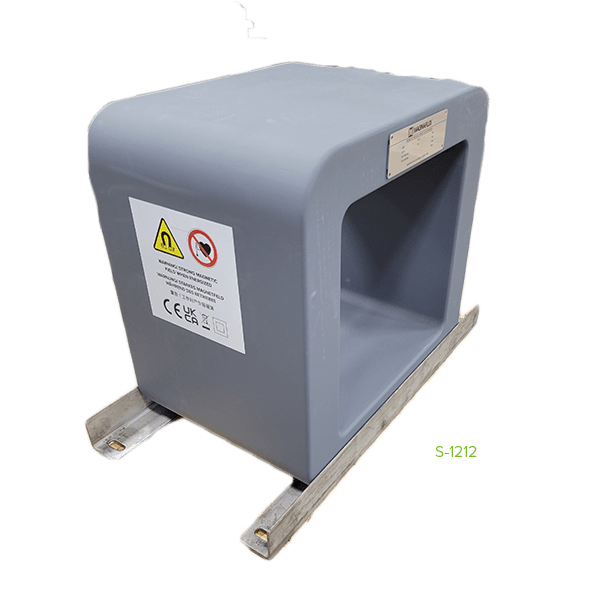

The Magnaflux S-1212 Demagnetization Coil is a compact tabletop unit designed to be conveniently integrated into existing mag particle inspection systems. Oil and waterproof by virtue of its plastic-impregnated glass coating, the S-1212 can be flush mounted to the work surface with supplied angle supports to facilitate easy part insertion by the operator.

TYPICAL APPLICATIONS:

• Demagnetizing parts that have been subjected to Magnavis and Magnaglo magnetic particle inspection


• Removing residual magnetism in parts intended for use near magnetic instrumentation


• Demagnetizing parts with bearing or journal surfaces


• Demagnetizing parts after contact with magnetic chucks or lifting magnets

Specifications

• 7,500 Amp Turns


• Inside dimensions: 12 x 12 in / 30 x 30 cm


• Size: 26.8 x 12.3 x 17.3 in /  68.1 x 31.2 x 44.0 cm


• Weight: 281 lb / 127 kg


• Available Voltages: 230, 400 (for 50 Hz only), 460 V


• Available Frequencies: 50 or 60 hertz, single phase power
