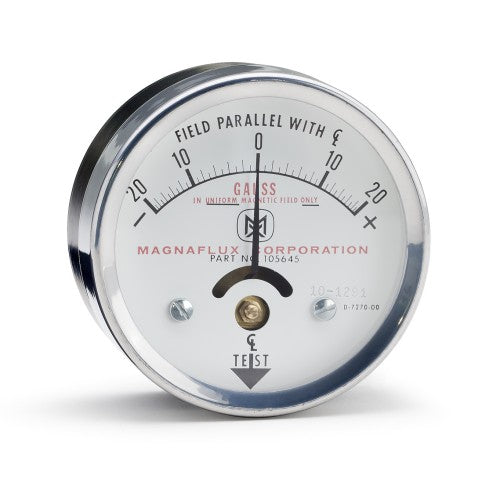

Magnaflux 20 gauss calibrated field indicator

INSTRUCTIONS

Place the field indicator near or directly against the object being tested. The lower rim of the indicator below the arrow is the most sensitive part of the meter and should be placed closest to the part being measured. The indicator should be placed near a position on the part that exhibits flux leakage such as the end of a bar shaped part. Magnetic polarity of the field is being measured by the direction of the pointer deflection on the center zero scale. A plus (+) indicates the meter has been presented to a North magnetic pole and a minus (-) to a South magnetic pole. The higher the reading, the stronger the magnetic field. Readings in gauss relate only to the magnitude of external leakage fields and should not be misconstrued as the flux density within the part.

Note:

1. If you place the indicator in a field strong enough, it may throw it considerably off scale.

2. If your field indicator comes in contact with the field of a demagnetizing coil or within the effective field of a conductor carrying a heavy alternating current, it may become demagnetized.
