Crack comparators are used to measure the actual size of indications identified during the liquid penetrant inspection process.

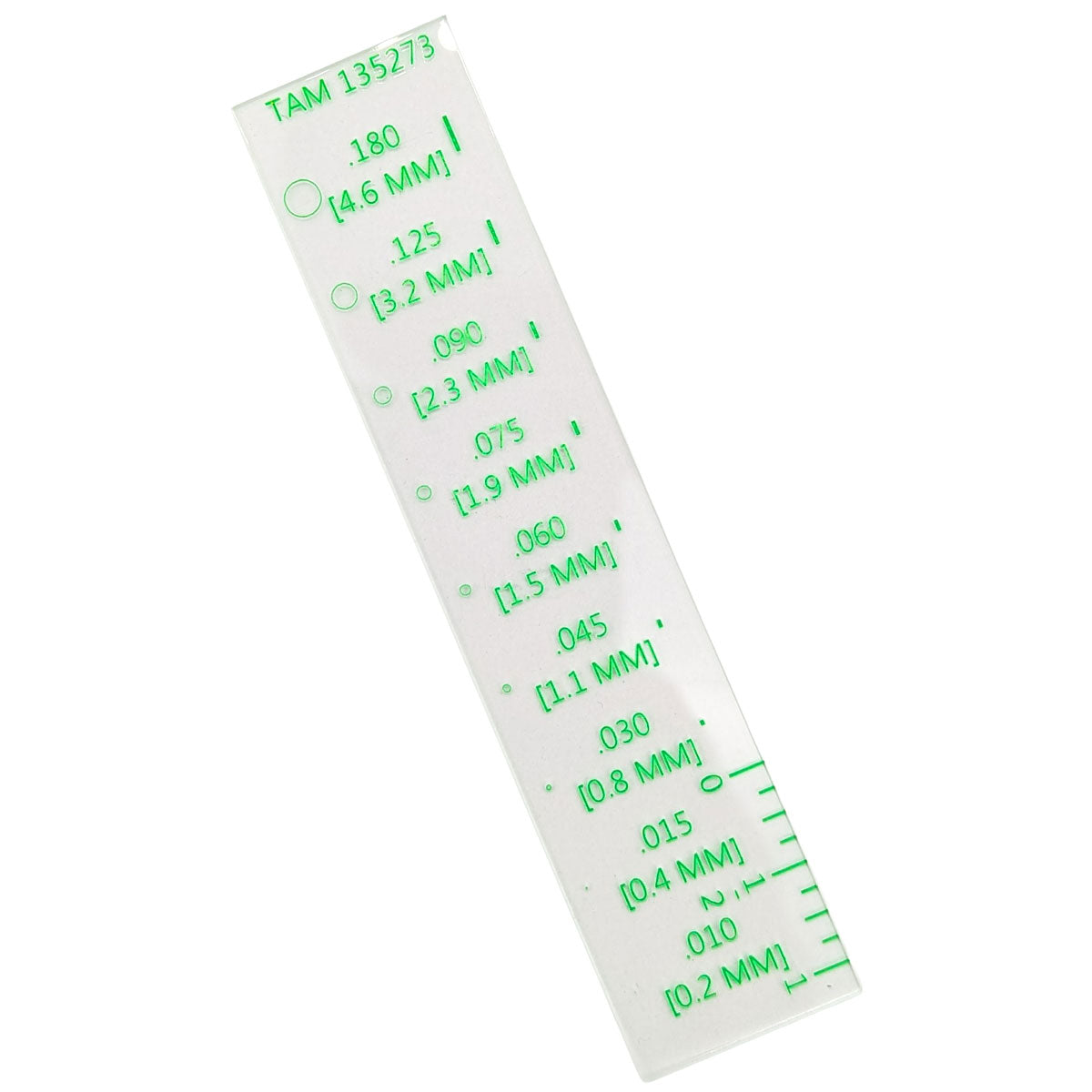

Pratt & Whitney Crack Comparator - Measures indications in increments between 0.010" and 0.180" (0.2 mm - 4.6mm) and meets Pratt & Whitney requirements (P&W Reference - TAM 135273)
Key Features
- Precision Measurement: Graduated scale from 0.010" to 0.180" (0.2 mm - 4.6mm) for accurate crack sizing
- Pratt & Whitney Standard Compliance: Designed to meet Pratt & Whitney specifications for aerospace applications
- Liquid Penetrant Testing: Essential tool for NDT professionals conducting penetrant inspections
- Durable Construction: Built to withstand regular use in inspection environments
- Easy Visual Comparison: Clear markings allow for quick and accurate measurements
Applications
- Non-destructive testing (NDT) operations
- Quality control and assurance programs
- Aerospace component inspection
- Automotive manufacturing testing
- General industrial maintenance
Specifications
Measurement Range: 0.010" - 0.180" (0.2 mm - 4.6mm)
Standard: Pratt & Whitney (TAM 135273)
Application: Liquid penetrant inspection
Type: Visual comparison tool
This TAM crack comparator provides NDT technicians with a reliable method for measuring crack indications during liquid penetrant testing procedures, ensuring accurate defect assessment and compliance with Pratt & Whitney standards.
