If you have ever performed a Magnetic Particle Inspection (MPI) and noticed that your indications look "fuzzy," or that the entire part glows with a confusing background fluorescence, you are not alone. These are classic signs of a failed bath.

In wet method MPI, the "bath" (the suspension of magnetic particles in liquid) is the single most critical variable. If the bath chemistry is off, even the strongest magnet in the world won’t find the crack.

This guide explains why baths fail, how to identify "Blue Haze," and the correct way to perform the daily settling test to ensure ASTM compliance.

Watch the Wet Bench Process in Action:
The video below demonstrates the proper application of fluorescent magnetic particle bath on a wet bench system.



1. The Foundation: Choosing the Right Carrier Fluid

The carrier fluid is the vehicle that transports the magnetic particles to the defect. It needs to have the right viscosity (thickness) to allow particles to move freely, but a high enough flash point to be safe in a shop.

Oil vs. Water: Which Should You Use?

  • Oil (Petroleum Based): This is the industry standard for most aerospace and critical steel inspections. It provides natural corrosion protection to the machine and the part. However, you cannot use just any oil. "Kerosene" or "Mineral Spirits" often have a low flash point (fire hazard) and high odor.
    Recommendation: Magnaflux Carrier II Oil is the NDT-approved standard. It is virtually odorless and has a high flash point (>200°F), keeping your shop safe and compliant.
  • Water: Water is cheaper and non-flammable, but it introduces the risk of rust. If you use water, you must add conditioning agents (corrosion inhibitors and wetting agents) or the particles will clump together and the steel parts will flash-rust immediately.

2. The Silent Killer: "Blue Haze" & Contamination

The most common reason for rejecting a bath is contamination. This comes in two forms:

  1. Foreign Matter: Dirt, scale, oil, and lint from the shop floor fall into the tank. If the volume of dirt exceeds 30% of the settled volume, the bath typically fails because the dirt physically blocks the particles from entering the crack.

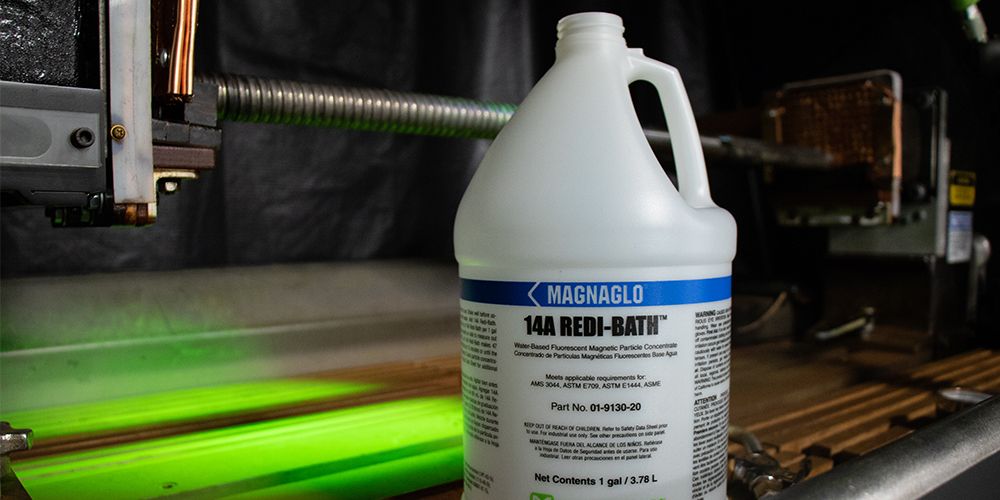

  2. Blue Haze (Loose Pigment): Fluorescent particles (like Magnaflux 14A) consist of a magnetic iron core wrapped in fluorescent pigment. Over time, agitation pumps can strip this pigment off the iron. The loose pigment floats freely in the oil, causing the entire bath to glow blue/green under UV light. This "background noise" kills contrast, making it impossible to see fine cracks.

3. The Daily Ritual: The Settling Test

To monitor the health of your bath, ASTM E1444 and ASTM E709 require a daily Settling Test. This measures the concentration of magnetic particles versus the amount of contamination.

How to Perform the Settling Test:

  1. Agitate: Run the pump for at least 30 minutes to ensure particles are evenly distributed in the tank.
  2. Fill: Fill a 100ml Centrifuge Tube to the 100ml line.
  3. Wait: Place the tube in a Centrifuge Stand and let it sit undisturbed.
    • Wait time for Oil: 60 minutes.
    • Wait time for Water: 30 minutes.
  4. Read: Look at the stem of the tube. You will see two distinct layers:
    • Bottom Layer: The heavy magnetic particles.
    • Top Layer: The lighter dirt, scale, and lint.

What is the Passing Criteria?

  • Concentration: The volume of magnetic particles (bottom layer) should typically be between 0.1 to 0.4 ml (check your specific procedure). If it's too low, add more 14A Particles.
  • Contamination: If the top layer (dirt/scale) exceeds 30% of the bottom layer (particles), the bath is considered contaminated.

4. When to Dump the Bath

You should drain, clean, and refill your system if:

  • The contamination layer in the centrifuge tube exceeds 30%.
  • The "Blue Haze" (background fluorescence) is making it difficult to see indications.
  • The bath becomes difficult to rinse off the parts.

Maintaining a clean bath isn't just about compliance—it's about confidence. A clean bath ensures that when you sign off on a part, you haven't missed a critical defect hidden by muddy fluid.
