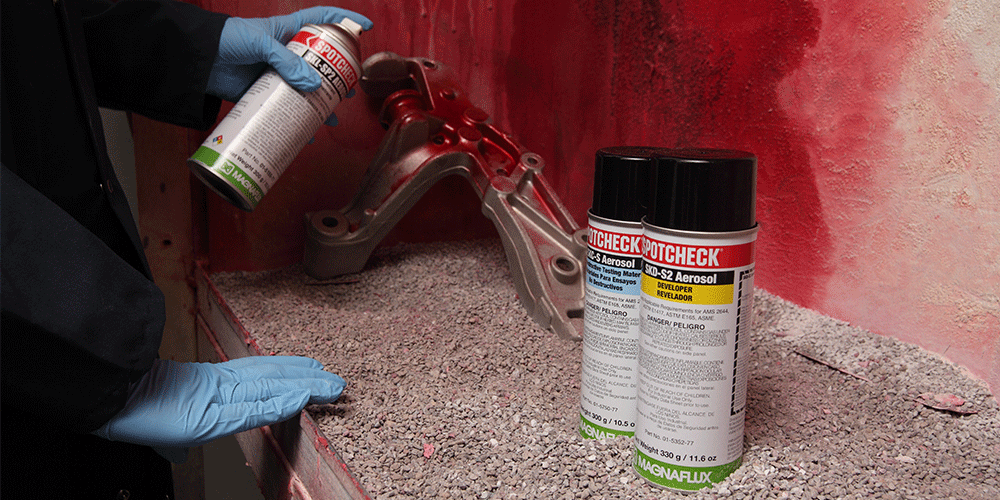

How to Inspect Welds for Cracks Using Magnaflux Spotcheck Products
Share
In the world of welding and fabrication, "good enough" doesn't cut it. Whether you are working on automotive parts, structural steel, or pressure vessels, verifying the integrity of your welds is critical for safety and performance. One of the most reliable, cost-effective, and portable methods for finding surface-breaking defects is Liquid Penetrant Testing (PT).
Known as "Dye Pen" or "Red Dye" testing, this Non-Destructive Testing (NDT) method uses capillary action to find cracks, porosity, and lack of fusion that are invisible to the naked eye. In this guide, we will walk you through the process using the industry-standard Magnaflux Spotcheck system.
What You Need
To conduct a proper inspection, you need three key components, all available at NDT Supplies:
- Cleaner/Remover: To prep the surface and remove excess dye.
- Penetrant: The vibrant red dye that finds the cracks.
- Developer: The white spray that draws the dye out to make it visible.
Tip: For a complete, grab-and-go solution, check out the Magnaflux Spotcheck SK-816 Dye Penetrant Kit, which includes everything you need in a portable carrying case.
Step-by-Step Inspection Guide
Step 1: Pre-Cleaning
The most common reason for a failed inspection is a dirty surface. Paint, oil, grease, and slag can block the penetrant from entering defects. Start by applying Magnaflux SKC-S Cleaner/Remover to the weld area. Wipe it thoroughly with a lint-free cloth until the metal is clean and dry. Allow the solvent to evaporate completely before moving to the next step.
Step 2: Apply Penetrant
Once the part is clean and dry, spray Magnaflux SKL-SP2 Penetrant over the inspection area. You need a uniform, wet coating that covers the weld and Heat Affected Zone (HAZ). Let the penetrant dwell on the surface for 10 to 30 minutes. This "dwell time" allows the dye to seep deep into any hairline cracks.
Step 3: Remove Excess Penetrant
This is the most critical step. You need to remove the dye from the surface without removing it from the cracks.
- Wipe the surface with a clean, dry cloth to remove the bulk of the red dye.
- Dampen a fresh cloth with SKC-S Cleaner/Remover.
- Gently wipe the surface until the red background is gone and only the metal remains.
Crucial Rule: Never spray the cleaner directly onto the part at this stage, as you might wash the penetrant out of the defects.
Step 4: Apply Developer
Shake the Magnaflux SKD-S2 Developer can vigorously. Hold it about 10-12 inches away from the part and spray a thin, even layer. You want a light dusting that dries to a matte white background—do not soak it. If the white layer is too thick, it can mask fine indications.
Step 5: Inspect and Evaluate
Watch the developer as it dries. If there are defects, the red penetrant will bleed out into the white developer, creating a high-contrast indication.
- Continuous Line: Indicates a crack.
- Dotted Line: Indicates a tight crack or cold shut.
- Round Spots: Indicates porosity or pitting.
Get Started Today
Magnaflux Spotcheck is a trusted solution for welders and inspectors worldwide because it is simple, accurate, and meets major industry standards (including ASME and ASTM). Ensure the quality of your work by stocking up on authentic Magnaflux products directly from NDT Supplies.
