Driving Safety: How Magnaflux NDT Products Are Used in the Automotive Industry
Share
In the high-stakes world of automotive manufacturing, racing, and restoration, component failure isn't an option. A microscopic crack in a crankshaft or a hidden pore in an aluminum cylinder head can lead to catastrophic engine failure, costly recalls, or dangerous accidents. This is where Non-Destructive Testing (NDT) becomes critical, and for decades, Magnaflux has been the trusted name mechanics and engineers turn to.
At NDT Supplies, we provide the full range of Magnaflux solutions tailored for the rigorous demands of the automotive sector. This guide breaks down how these powerful tools are used to ensure the structural integrity of vehicles, from the assembly line to the race track.
The Two Pillars of Automotive NDT
The application of Magnaflux products in the automotive world generally falls into two primary categories based on the material being tested:
- Magnetic Particle Inspection (MPI) for ferromagnetic materials like steel and iron.
- Liquid Penetrant Inspection (LPI) for non-porous, non-ferrous materials like aluminum and magnesium.
1. Magnetic Particle Inspection (MPI) for Iron & Steel
Often referred to simply as "Magnafluxing" in machine shops, MPI is the standard for inspecting heavy-duty, high-stress steel components.
Common Applications:
- Crankshafts
- Camshafts
- Connecting Rods
- Engine Blocks (Cast Iron)
- Gears and Axles
How It Works: The part is magnetized, creating a magnetic field within the material. If a surface or near-surface crack is present, the magnetic field "leaks" out at that point. When magnetic particles are applied, they are drawn to this leakage field, clustering around the crack to form a highly visible indication.
Key Products for Automotive MPI:

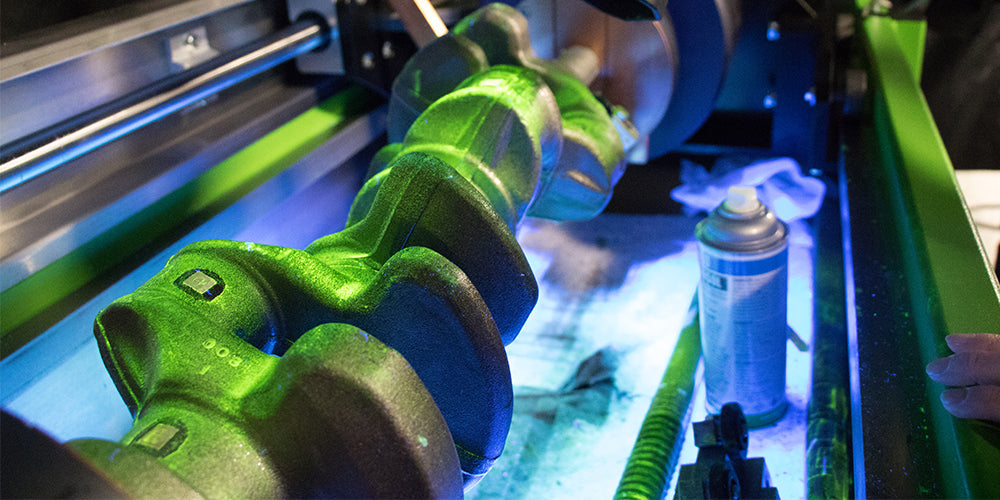

- High-Sensitivity Fluorescent Particles: For critical engine components where the finest hairline cracks must be detected, fluorescent particles are essential. Products like Magnaflux 14A Fluorescent Magnetic Particles are engineered with optimized particle size and mobility to provide bright, clear indications under UV light, ensuring no defect goes unnoticed during a rebuild or quality check.
-
Portable Magnetic Yokes: For mechanics working on an engine stand or in a repair shop, a handheld electromagnetic yoke is the tool of choice.
- The Magnaflux Y-2 AC Yoke is favored for its lightweight, ergonomic design, reducing fatigue during long inspections of cylinder heads or blocks.
- For greater versatility, the Magnaflux Y-7 AC/DC Yoke allows operators to switch between AC mode for surface cracks and DC mode to find defects deeper below the surface.
2. Liquid Penetrant Inspection (LPI) for Aluminum & Non-Ferrous Parts
Modern vehicles rely heavily on lightweight materials like aluminum for engine heads, transmission cases, and suspension components. Since these aren't magnetic, MPI won't work. Instead, Liquid Penetrant Inspection is used to find surface-breaking flaws.
Common Applications:
- Aluminum Cylinder Heads
- Transmission Housings
- Steering Knuckles
- Aluminum Wheels
- Performance Suspension Parts
How It Works: A brightly colored or fluorescent dye is applied to the clean part surface and allowed to "dwell," seeping into any open cracks. Excess dye is wiped away, and a developer is applied. The developer acts like a blotter, drawing the trapped dye back out of the crack to create a high-contrast indication.
Key Products for Automotive LPI:
- Visible Red Dye Kits: For quick, reliable checks on the shop floor without needing a UV light, the "red dye" method is industry-standard. The Magnaflux Spotcheck SK-816 Kit is a complete, portable solution containing cleaner, penetrant, and developer in convenient aerosol cans. It's perfect for finding cracks in aluminum cylinder heads between valve seats or around spark plug holes.
- Fluorescent Penetrants for High Performance: For the highest level of sensitivity, especially in aerospace-grade automotive applications or precision racing components, fluorescent penetrants are used. Products like the Magnaflux Zyglo ZL-27A Penetrant glow brightly under UV black light, revealing even the most minute discontinuities that visible dyes might miss.
Why the Automotive Industry Trusts Magnaflux
- Prevention is Cheaper Than Failure: Finding a cracked connecting rod during an engine teardown is infinitely cheaper than replacing an entire blown engine.
- Performance Assurance: High-performance racing teams "Magnaflux" critical components after every race to detect fatigue cracks caused by extreme stress, ensuring safety at 200+ mph.
- Quality Control: Manufacturers use these methods on the production line to ensure that casting or forging defects don't make it into the final vehicle, preventing costly recalls.
At NDT Supplies, we are proud to offer the complete line of Magnaflux products to support automotive professionals in their pursuit of safety and performance. Whether you're a local machine shop or a large-scale manufacturer, we have the NDT solutions you need.
