Magnaflux P-1500 - Portable Power Pack - 460v

Item# 628825
$10,925.00
Availability: Contact us for availability
Ship weight: 93 lbs

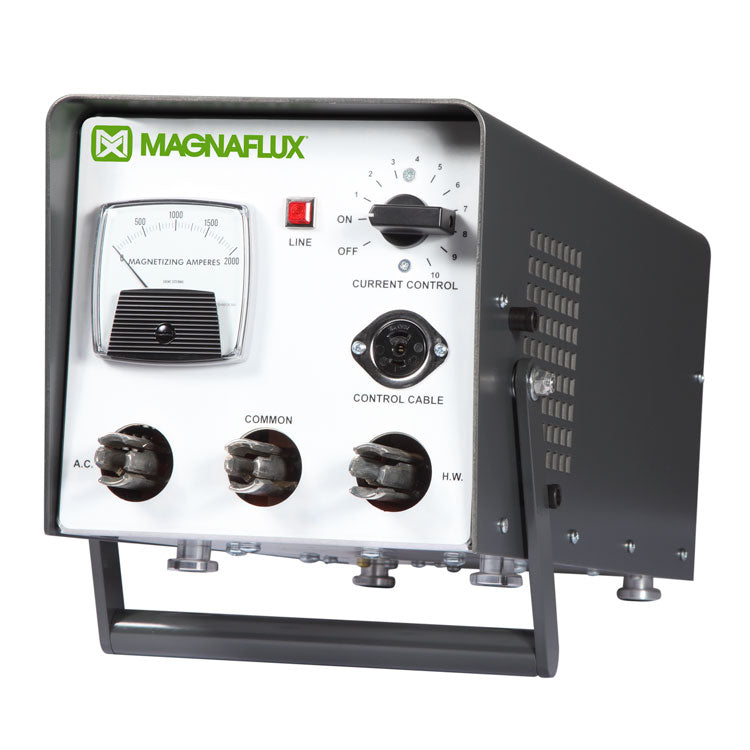

Magnaflux P-1500 Portable Power Pack - 460V

The Magnaflux P-Series is an extremely compact, lightweight portable magnetizing unit designed for use in a wide range of magnetic particle inspection applications that require only moderate power to perform.Perfect for in-service inspections demanding maximum portability, the P-Series is built tough to take job-site abuse and offers many of the features and convenience of our larger units.The current control potentiometer of P-Series P-70 and P-1500 units provides infinitely variable magnetizing and demagnetizing current control. A power transformer, supported by fan cooled silicon diodes, transforms the high voltage, low amperage line input to low voltage, high amperage half-wave D.C. for magnetizing. Low voltage, high amperage A.C. is also provided for magnetizing and demagnetizing.

P Series Features:

  • Locate surface discontinuities using AC current. Switch cable connections to halfwave DC (HWDC)to locate near surface defects
  • Locate discontinuities in any direction using prods, central conductor or coil wrap
  • Infinitely variable current control
  • Demagnetize parts in AC mode by slowly turning current dial to zero
  • Built-in automatic-reset circuit breaker
  • May be used as the main power source for the Mag Kit modular bench inspection system
  • Comes standard with 15 ft / 4.5 m remote control cable

Specifications:
  • Length: 22" (55.8 cm)
  • Width: 9.5" (24.3 cm)
  • Height: 9.5" (24.3 cm)
  • Maximum output: 1500 amps, AC or HWDC
  • Current input single phase: 460 VAC, 50/60 hz
  • Line current: 21 amps @ 460 VAC
  • Maximum duty cycle: 2 minutes ON 2 minutes OFF
  • Unit weight: 93 lbs (42.2 kg)
